The arches and purlins in the Cold Frame Series all feature Superior strength ROLL-FORM steel for unmatched structural integrity. ROLL-FORM sections direct more strength to the longer axis of the metal. Conley's use of COLD FORMING procedures protect the metal's galvanizing features.
Conley’s continuous coil process allows you to access sections of steel as long as necessary to fit your unique needs. Incorporating continuous coils of pre-galvanized metal, ROLL-FORM mills incur virtually no material waste and can generate sections of steel as long as necessary. This means that Conley’s can form wider houses out of a single piece of steel versus some manufacturers who are forced to “splice” their trusses together.
Components of the Cold Frame Series structures are shipped to the customer pre-punched and cut to length, simplifying the installation process. Given the shapes of the ROLL-FORMED components, they are naturally able to be nested one into the other during shipment, substantially reducing freight rates.
Some key characteristics featured in the Cold Frame Series are compared below
|
Type of Roof
|
Engineered Widths
|
Column Spacing
|
Gutter Heights
|
|

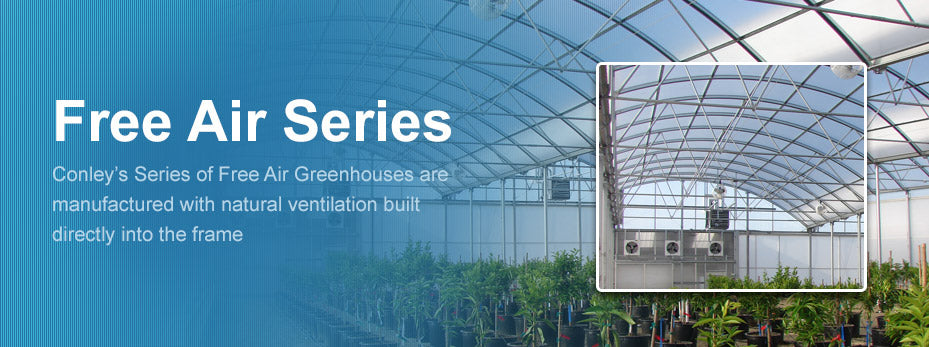

| Free Air 4000 | Sawtooth | 24', 30' | 12' | 8', 10', 12', 14' |
|---|---|---|---|---|
| Free Air 5000 | Arched Sawtooth | 24', 30' | 12' | 8', 10', 12', 14' |
| Free Air 5300 | Arched Sawtooth | TBD | TBD | TBD |
|
Type of Roof
|
Available Widths
|
Peak Heights
(Per Width) |
Sidewall Heights
|
|
| Cold Frame 1000 | Ground-to-Ground Arch | 16', 20' | 7'-6", 10' | N/A |
|---|---|---|---|---|
| Cold Frame 1100 | Arch with Sidewalls | 20', 24' | 8'-6", 9' | 3'-6", 6' |
| Cold Frame 1200 |
Gothic Arch with Sidewalls |
30', 35' | 12'-6", 14' | 4', 6' |
| Mountain 1200 | Gothic Arch with Sidewalls | 20', 24', 30' | 12'-1", 12'-10", 14'-6" | 6' |
